Collecting data

Dataset Structure

A dataset has the following structure:

example_ds/
├── demo_0/
│   ├── example_feature/
│   │   └── data.h5
│   ├── video_feature/
│   │   ├── data.mp4
│   │   └── timestamps.h5
│   └── meta.json
├── demo_1/
│   └── ...
├── demo_2/
│   └── ...
└── dataset_config.json

A demo is one recording consisting of various features. Features can be an of one of the following types:

  • "VISUAL": these are image types
  • "STATE": these are arrays of floats that can be read from the robot system (e.g. joint states, force sensors)
  • "ACTION": these are arrays of floats that are input into the robot system (e.g. a cartesian velocity command)
  • "TEXT": this can be used for serializing any other data, e.g. user input button data can be saved as a json string.

Each dataset has a config file named dataset_config.json which describes the features and their shapes that are present in the dataset. Furthermore each demo has a meta.json file which describes when the demo was recorded, statistics used for normalization as well as some other information.

Dataset Creation

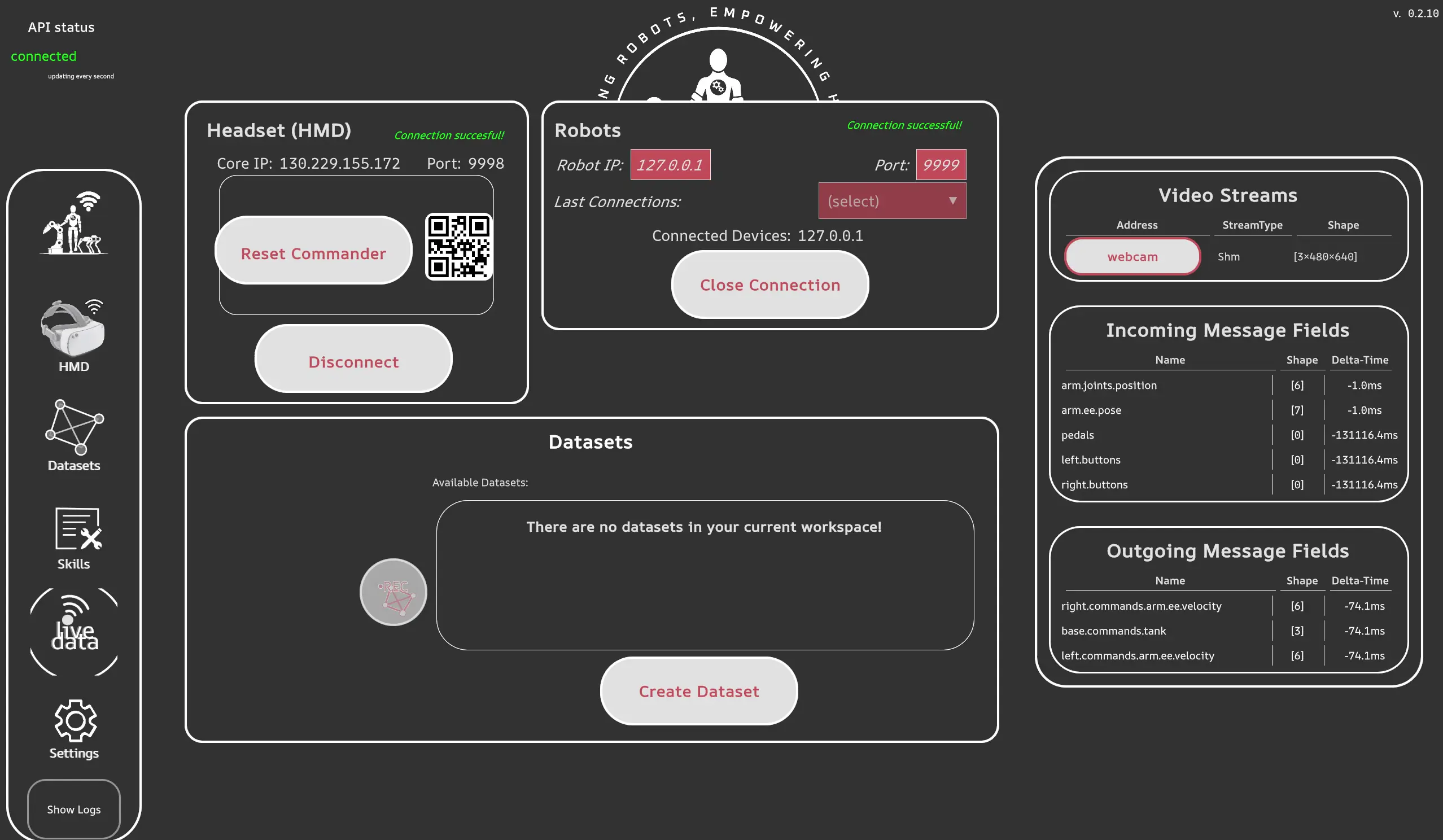

In order to create a new dataset, open the dataset panel and click the '+' icon. You can now choose a name for the dataset and select all features that you want to record. Features that can be selected for recording are:

  • video stream keys (as they appear under Live Data - Video Streams)
  • outgoing commands (as they appear under Live Data - Incomming message fields)
  • incomming robot state (as they appear under Live Data - Incomming message fields)

If the features are missing from the live data, ensure that you have connected the headset and the robot.

Recording a demo

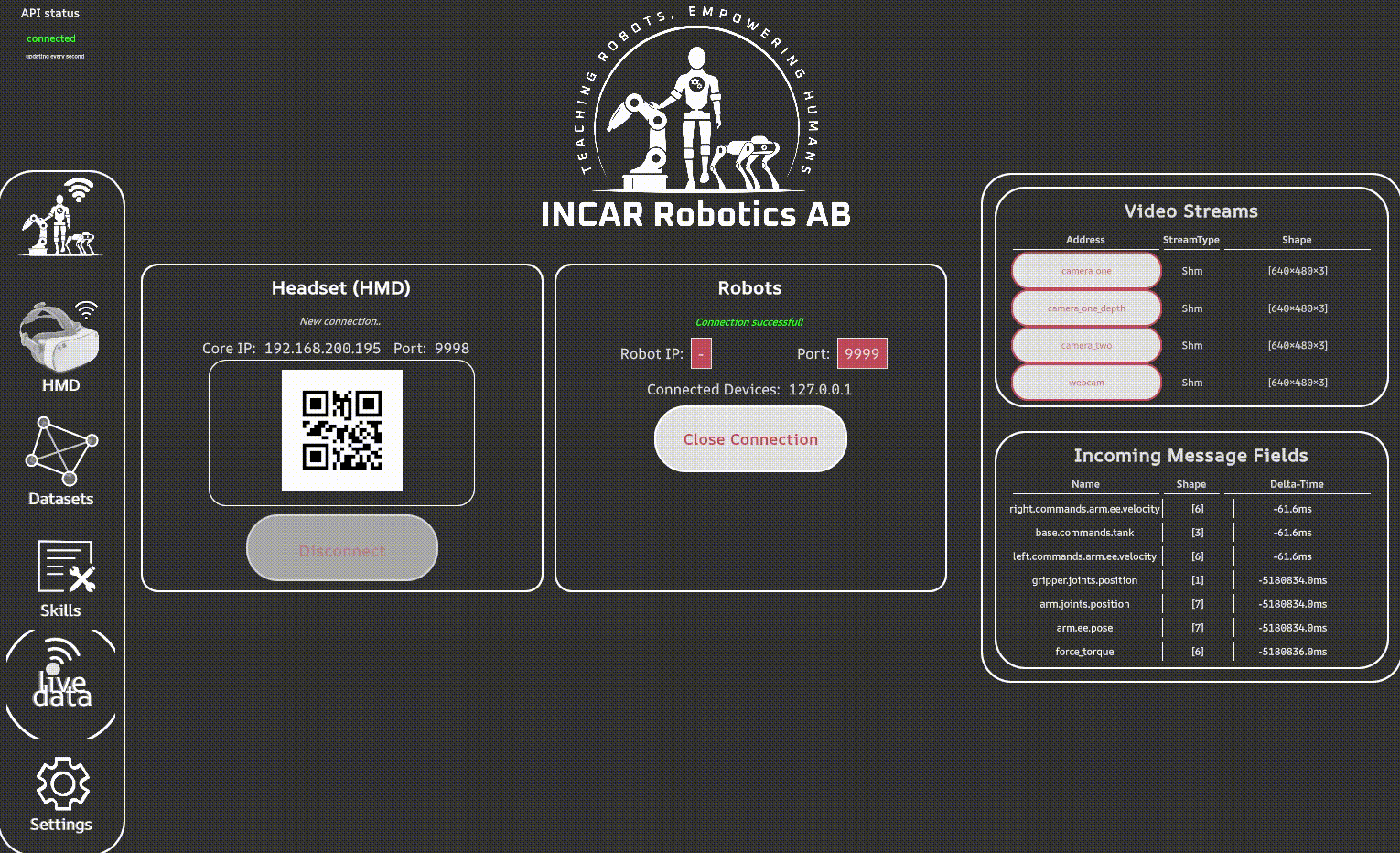

To record a demo, make sure you select a dataset first and then use the start, stop or discard buttons in the GUI. The screen will turn red to indicate the recording state. Alternatively, you can start/stop recording by pressing Y + rightTrigger, and discard by pressing B + rightTrigger on the controllers.

Note

Custom keybinding is on the roadmap.

It is good to ensure that the first demo of a recording session indeed recorded properly. Reasons for a recording to fail can be:

  1. Not all features as established in dataset_config.json are received. Make sure that all features you want to record are actually recorded by inspecting the incomming messages.
  2. The feature type established in dataset_config.json differs from the received type.
  3. The shape of the received data does not correspond to the shape established in dataset_config.json.

If a demo recording fails for any reason, it will log a warning.

If you want to inspect the dataset, you can go to the folder [ws_path]/datasets/[dataset_name]/demo_[x] and see the data of all the features.

Next step: Training a policy
